Ultra-Wide Self-Ordering Kiosk with Split-Screen Advertising for Revenue Generation
Key Specifications/ Special Features:
Ultra-Wide Self-Ordering Kiosk with Split-Screen Advertising for Revenue Generation
The Ultra-Wide Self-Ordering Kiosk features a split-screen design that combines ordering functionality with advertising space, creating an additional revenue stream for businesses. Its ultra-wide display is perfect for showcasing promotions, videos, and interactive ads while customers place their orders. The kiosk supports advanced payment options and customizable software, ensuring a seamless user experience. With its eye-catching design and dual-purpose functionality, this kiosk is ideal for retail stores, malls, and entertainment venues.
This kiosk is ideal for retail stores, malls, and entertainment venues where high customer traffic provides ample opportunities for advertising. The high-resolution display delivers vibrant and eye-catching visuals, capturing the attention of passersby and enhancing customer engagement. With advanced payment options, including cashless and card payments, the kiosk ensures quick and secure transactions, while the customizable software allows businesses to tailor the interface to their branding and promotional needs.
The durable construction ensures that the kiosk can withstand the rigors of high-traffic environments, while the energy-efficient operation reduces power consumption, making it a sustainable choice for businesses. Whether you’re looking to boost advertising revenue, streamline the ordering process, or create a more engaging customer experience, this kiosk is the ultimate solution for modern businesses.
Key Features:
- Ultra-wide touchscreen display: Combines functionality with an immersive visual experience.
- Split-screen design: Integrates ordering functionality with advertising space for dual-purpose use.
- High-resolution display: Delivers vibrant and crisp visuals for promotions and ads.
- Advanced payment options: Supports cashless and card payments for quick and secure transactions.
- Customizable software: Allows businesses to tailor the interface to their branding and promotional needs.
- Eye-catching design: Captures customer attention and enhances engagement.
- Durable construction: Built to withstand heavy usage in high-traffic areas.
- Energy-efficient operation: Reduces power consumption while maintaining high performance.
Applications:
This kiosk is ideal for retail stores, where it can showcase promotions and ads while facilitating quick and easy ordering. It’s also perfect for malls, providing a centralized solution for wayfinding, promotions, and transactions. In entertainment venues, such as cinemas or theme parks, the kiosk can enhance the guest experience by combining ticket or concession ordering with interactive advertising. Additionally, it’s a great fit for advertising-heavy locations, such as airports or transit hubs, where its dual-purpose functionality can drive both customer engagement and revenue growth.
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||

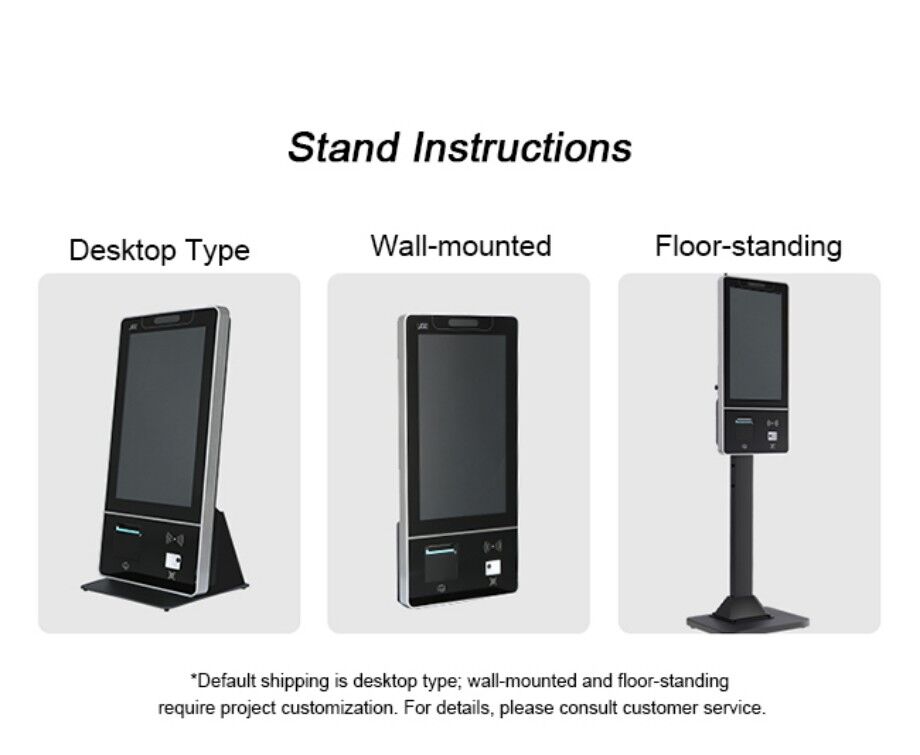

| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
| Weight | 50 kg |
|---|---|
| Dimensions | 87,4 × 14,2 × 58,7 cm |
