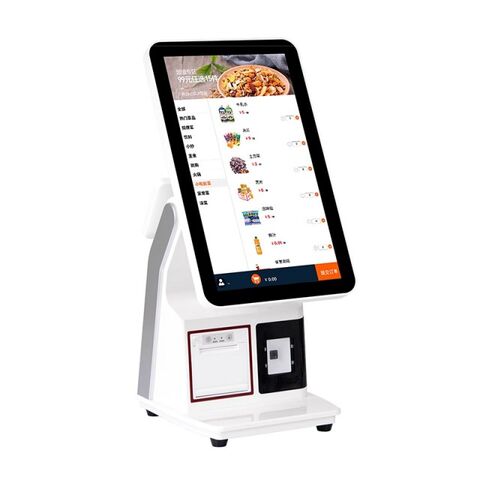

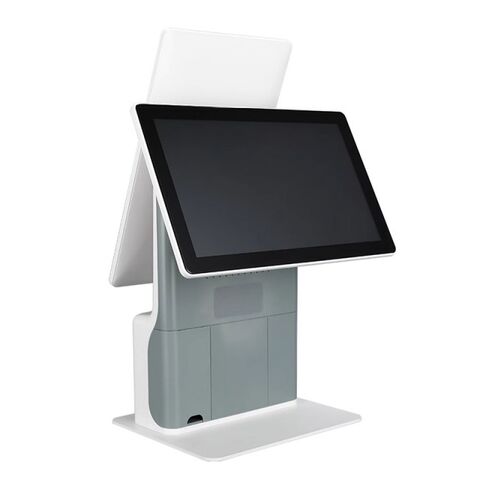

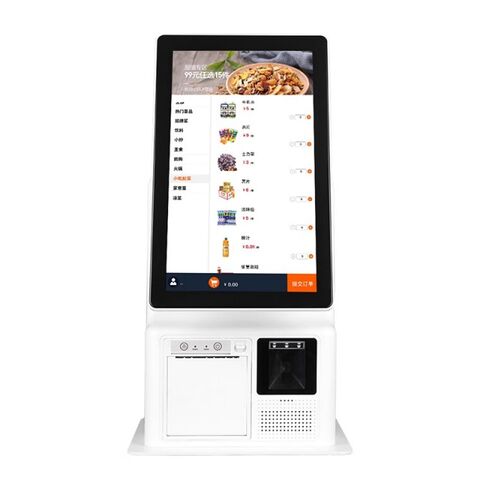

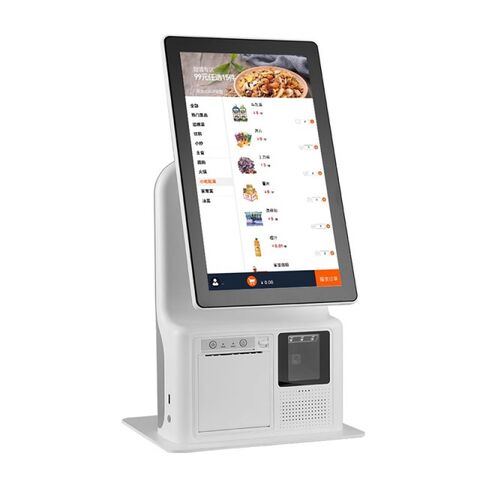

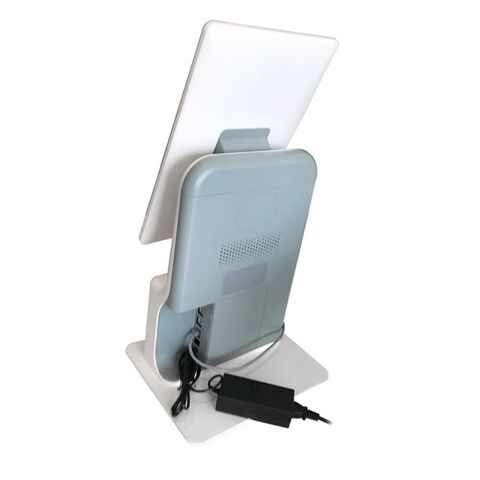

Multi-Functional Self-Ordering Kiosk with Integrated Loyalty Program and Gift Card Redemption
Key Specifications/ Special Features:
Multi-Functional Self-Ordering Kiosk with Integrated Loyalty Program and Gift Card Redemption
The Multi-Functional Self-Ordering Kiosk is a cutting-edge solution designed to elevate customer engagement and foster brand loyalty. By seamlessly integrating loyalty programs and gift card redemption features, this kiosk creates a personalized and rewarding experience for customers. Users can easily earn and redeem rewards, check loyalty points, and use gift cards directly through the kiosk, making every interaction seamless and enjoyable. Its high-resolution display and responsive touch interface ensure smooth navigation, while the customizable software allows businesses to tailor promotions and loyalty incentives to meet their specific needs.

This kiosk is perfect for restaurants, retail stores, and supermarkets looking to build long-term customer relationships. The integration of loyalty programs not only boosts customer retention but also provides valuable insights into purchasing behavior, enabling businesses to refine their marketing strategies and offer targeted promotions. Its compact yet robust design makes it suitable for high-traffic areas, while the energy-efficient operation ensures cost savings and sustainability. Additionally, the kiosk supports multi-language options, making it ideal for diverse customer bases in global markets.
Whether deployed in a café, a supermarket, or an entertainment venue, the Multi-Functional Self-Ordering Kiosk delivers a modern, customer-centric solution that drives repeat business and enhances brand loyalty.

Key Features:
- Multi-functional touchscreen display: Combines functionality with a sleek and modern design.
- Integrated loyalty program and gift card redemption: Allows customers to earn and redeem rewards seamlessly.
- High-resolution display: Delivers clear and vibrant visuals for an engaging user experience.
- Responsive touch interface: Ensures smooth and intuitive navigation for customers.
- Customizable software: Enables businesses to tailor promotions and loyalty incentives.
- Advanced payment options: Supports cashless and card payments for quick and secure transactions.
- Durable construction: Built to withstand heavy usage in high-traffic areas.
- Energy-efficient operation: Reduces power consumption while maintaining high performance.

Applications:

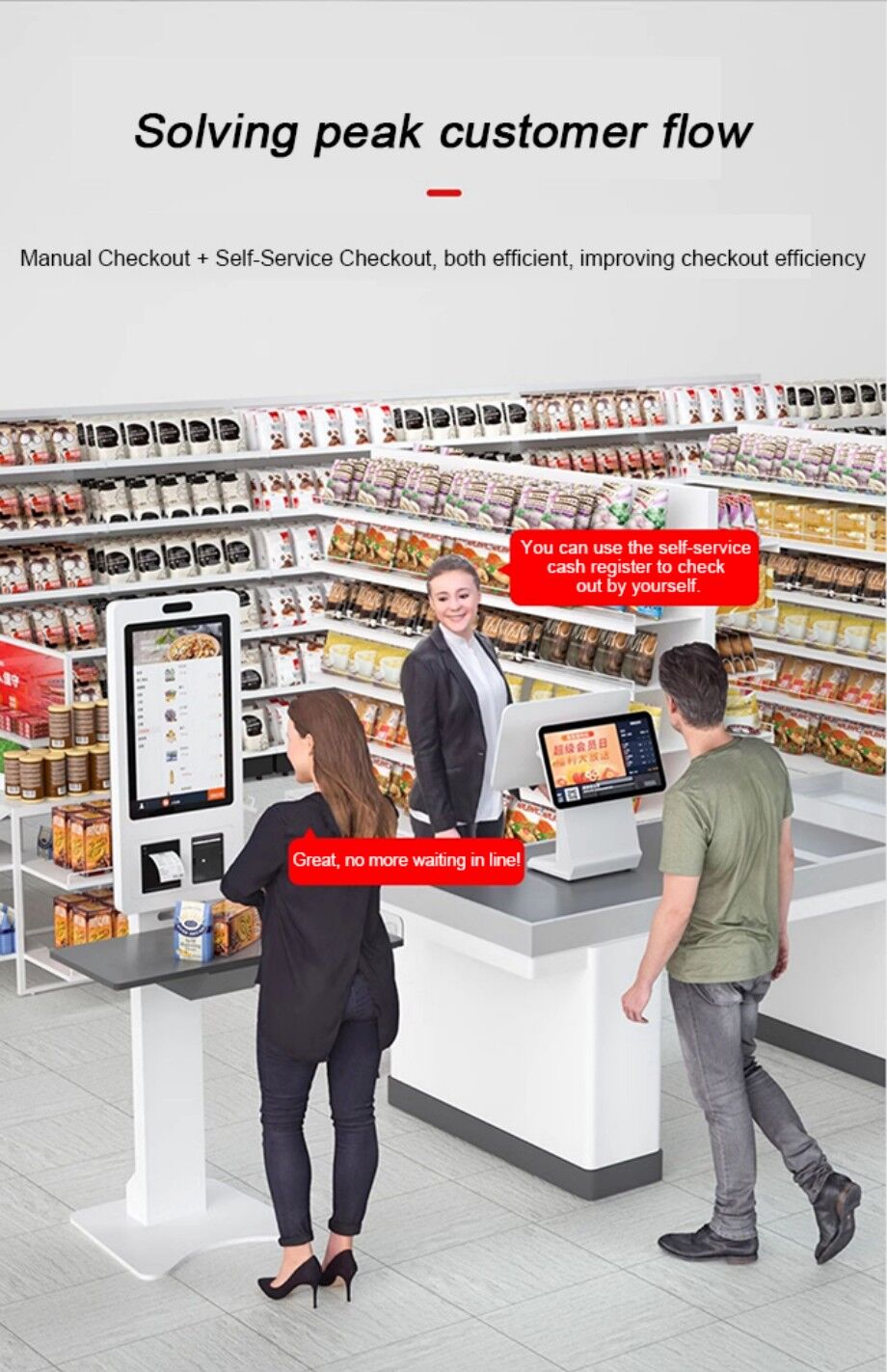

This kiosk is ideal for restaurants, where it can enhance the dining experience by rewarding loyal customers with personalized offers. It’s also perfect for retail stores, enabling customers to check loyalty points and redeem rewards while shopping. In supermarkets, the kiosk can streamline the checkout process while promoting loyalty programs and gift card usage. Additionally, it’s a great fit for loyalty-driven businesses, such as cafes, entertainment venues, and specialty stores, where building customer relationships is a top priority.

Why Choose This Kiosk?
The Multi-Functional Self-Ordering Kiosk is more than just a self-service tool—it’s a powerful platform for building customer loyalty and driving repeat business. By integrating loyalty programs and gift card redemption, this kiosk creates a personalized and rewarding experience that keeps customers coming back. Its customizable software, durable construction, and energy-efficient operation make it a versatile and sustainable choice for businesses looking to enhance customer engagement and operational efficiency.


Whether you’re looking to boost customer retention, refine your marketing strategies, or create a more engaging customer experience, this kiosk is the ultimate solution for loyalty-driven businesses.

LCD Panel Parameters | Screen Size | 21.5 inch | |
Display area | 476.5(H) X 268(V)mm | ||
Aspect Ratio | 16 : 9 | ||
LCD Type | a-Si TFT-LCD | ||
Max Resolution | 1920 X 1080 | ||
Display color | 16.7M , 72% NTSC | ||
Brightness | 350 cd/㎡ | ||
Contrast Ratio | 3000 :1 | ||
Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
Response Time | 20ms | ||
LCD Panel Life(hrs) | 60,000(hrs) | ||
Field Frequency | 60Hz | ||
PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
Touch points | 10 points | ||
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
Anti-microbial protection and Shatterproof Protection | |||
Optically bonded 3mm glass for low parallax | |||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
Response speed | < 6ms | ||
Accuracy of touch | More than 90% of the touch area ±2mm | ||
Touch ways | Fingers, touch pen | ||
Output format | The coordinate output | ||
Clicks time | Unlimited | ||
The smallest touch size | 5mm | ||
Long resistance | Yes available | ||
Touch Interfaces | USB | ||
Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
Mini PC Parameters (Fan-less Industrial PC) | CPU | Celeron J1900 | |
RAM | 8GB | ||
SSD | 64GB | ||
WIFI | 150Mbps 802.11n wifi integate | ||
Network port | RJ45, 10M/100M Adaptive Ethernet | ||
Interface | 2 * RJ45 GB Ethernet | ||
2 * RS232 Serial Port | |||
operating system | Win10 or win11 optional | ||
Onboard interface | HDMI input | 1 | |
VGA input | 1 | ||
DVI input | 1 | ||
USB Type B or Any USB Type optional | 1 | ||

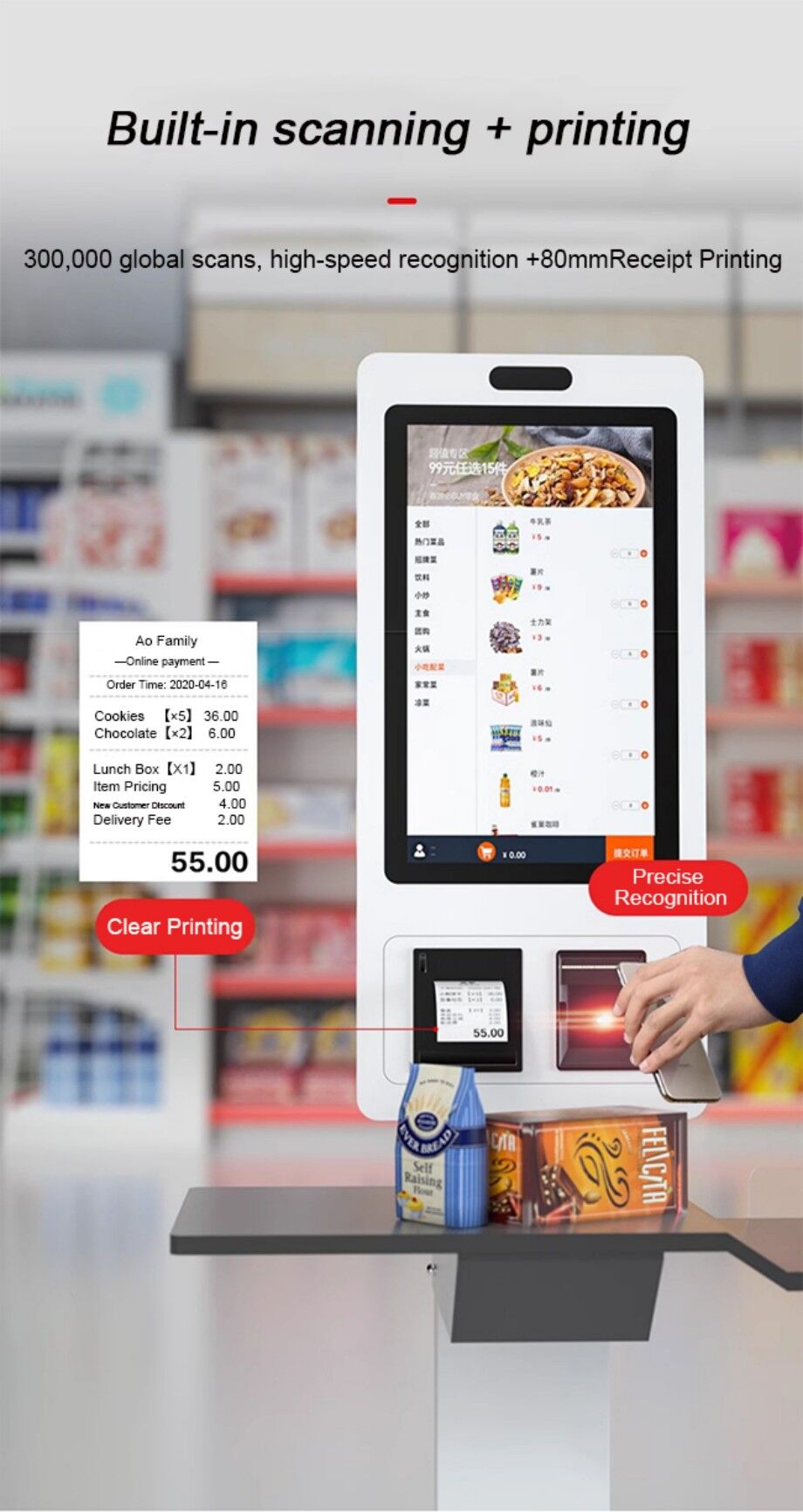

Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
Receipt Printer | 80mm Thermal printer with cutter | ||
Power | Power supply | AC 100V~240V, 50/60Hz | |
The Max power loss | ≤ 45w | ||
Standby power loss | < 1W | ||
Features | Operating temperature | 0℃ ~ 50℃ | |
Storage temperature | below10℃ ~ +60℃ | ||
Accessories | The length of Power Cable | 1.5m | |
The length of HDMI Cable | 2m | ||
The length of USB-A to USB-B Cable | 1.5m | ||

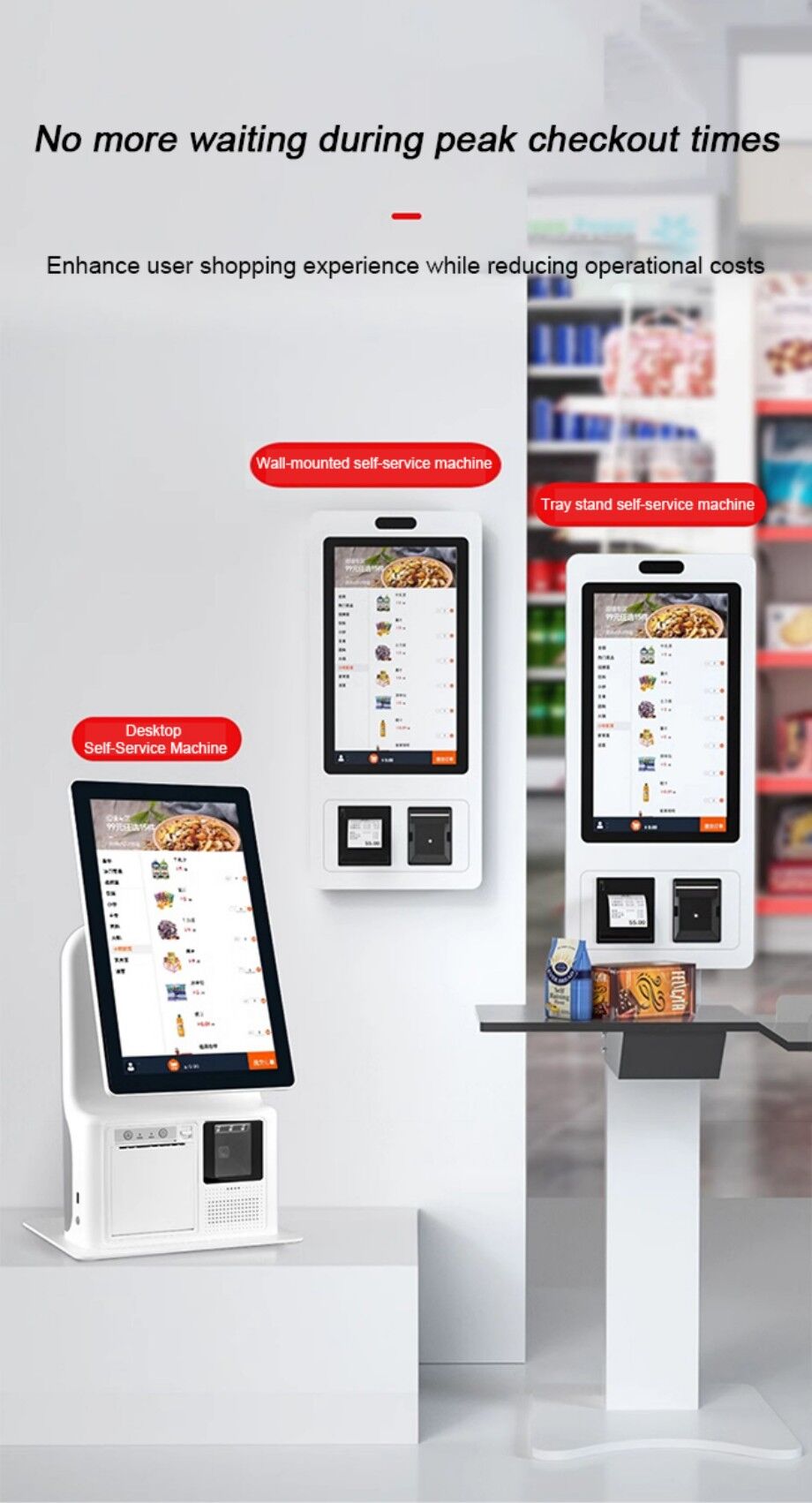

Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |

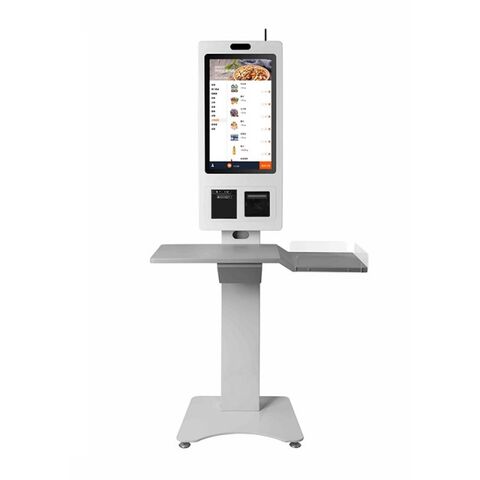

Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
Package size | Machine body size | Customized | |
Net weight | Customized | ||
Unit Package size | 585 X 380 X 110mm | ||
The Gross weight of Unit Package | 50kg |
Weight | 50 kg |
---|---|
Dimensions | 87,4 × 14,2 × 58,7 cm |
