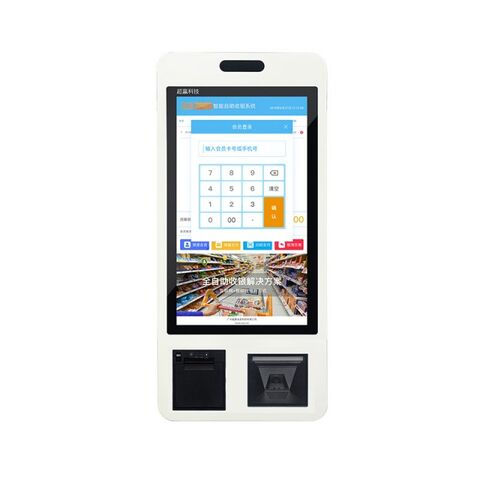

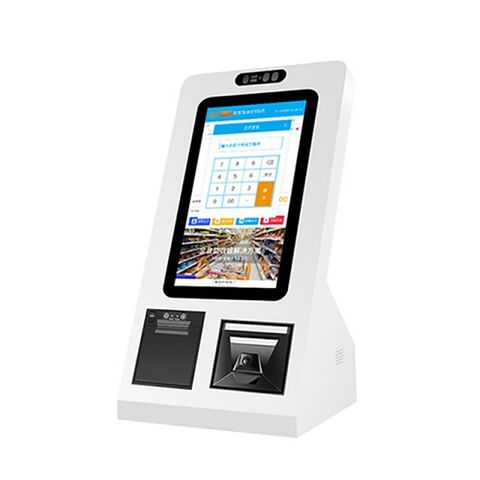

Hygienic Self-Ordering Kiosk with Antimicrobial Coating for Health-Conscious Environments
Key Specifications/ Special Features:
Hygienic Self-Ordering Kiosk with Antimicrobial Coating for Health-Conscious Environmentsa
The Hygienic Self-Ordering Kiosk is a cutting-edge solution designed to prioritize health and safety in environments where hygiene is paramount. Featuring an antimicrobial coating on all touch surfaces, this kiosk significantly reduces the spread of germs, making it an ideal choice for hospitals, clinics, food service areas, and other health-conscious businesses. Its easy-to-clean surface ensures quick and effective maintenance, while the robust construction guarantees durability and long-lasting performance, even in high-traffic settings.

This kiosk is equipped with an intuitive interface that provides a seamless ordering experience for users of all ages and technical abilities. The contactless payment options further enhance its hygienic benefits, allowing customers to complete transactions without physical contact, which is especially important in healthcare and food service environments. The customizable software enables businesses to tailor the kiosk to their specific applications, whether it’s for patient check-ins, meal ordering, or retail transactions.
With its energy-efficient operation, this kiosk not only supports sustainability goals but also reduces operational costs. Whether deployed in a hospital cafeteria, a clinic waiting room, or a quick-service restaurant, the 20 Inch Hygienic Self-Ordering Kiosk delivers a safe, efficient, and user-friendly solution that aligns with the highest standards of cleanliness and customer care.

Key Features:
- Touchscreen display with antimicrobial coating: Reduces the spread of germs and ensures a hygienic user experience.
- Hygienic design: Perfect for health-conscious environments where cleanliness is a top priority.
- Easy-to-clean surface: Simplifies maintenance and ensures a consistently clean appearance.
- Contactless payment options: Enhances safety by minimizing physical contact during transactions.
- Robust construction: Built to withstand heavy usage in demanding environments.
- Intuitive interface: Provides a seamless and user-friendly ordering experience.
- Customizable software: Tailored to meet the specific needs of healthcare, food service, and retail applications.
- Energy-efficient operation: Reduces power consumption and supports sustainability goals.

Applications:
It is ideal for hospitals, where it can streamline patient check-ins, meal ordering, and wayfinding while maintaining strict hygiene standards. It’s also perfect for clinics, providing a safe and efficient way for patients to check in or access information. In food service areas, such as hospital cafeterias or quick-service restaurants, the kiosk ensures a hygienic ordering process that protects both customers and staff. Additionally, it’s a great fit for health-conscious businesses, such as gyms, spas, and wellness centers, where cleanliness and safety are top priorities.

Why Choose This Kiosk?
The Hygienic Self-Ordering Kiosk is more than just a self-service tool—it’s a commitment to health and safety. By combining antimicrobial technology, contactless payment options, and an easy-to-clean design, this kiosk ensures a hygienic and efficient experience for both customers and staff. Its robust construction and customizable software make it a versatile solution for a wide range of applications, while its energy-efficient operation aligns with sustainability goals.

LCD Panel Parameters | Screen Size | 32 inch | |
Display area | 698(H) X 391.8(V)mm | ||
Aspect Ratio | 16 : 9 | ||
LCD Type | a-Si TFT-LCD | ||
Max Resolution | 1920 X 1080 | ||
Display color | 16.7M , 72% NTSC | ||
Brightness | 350 cd/㎡ | ||
Contrast Ratio | 3000 :1 | ||
Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
Response Time | 20ms | ||
LCD Panel Life(hrs) | 60,000(hrs) | ||
Field Frequency | 60Hz | ||

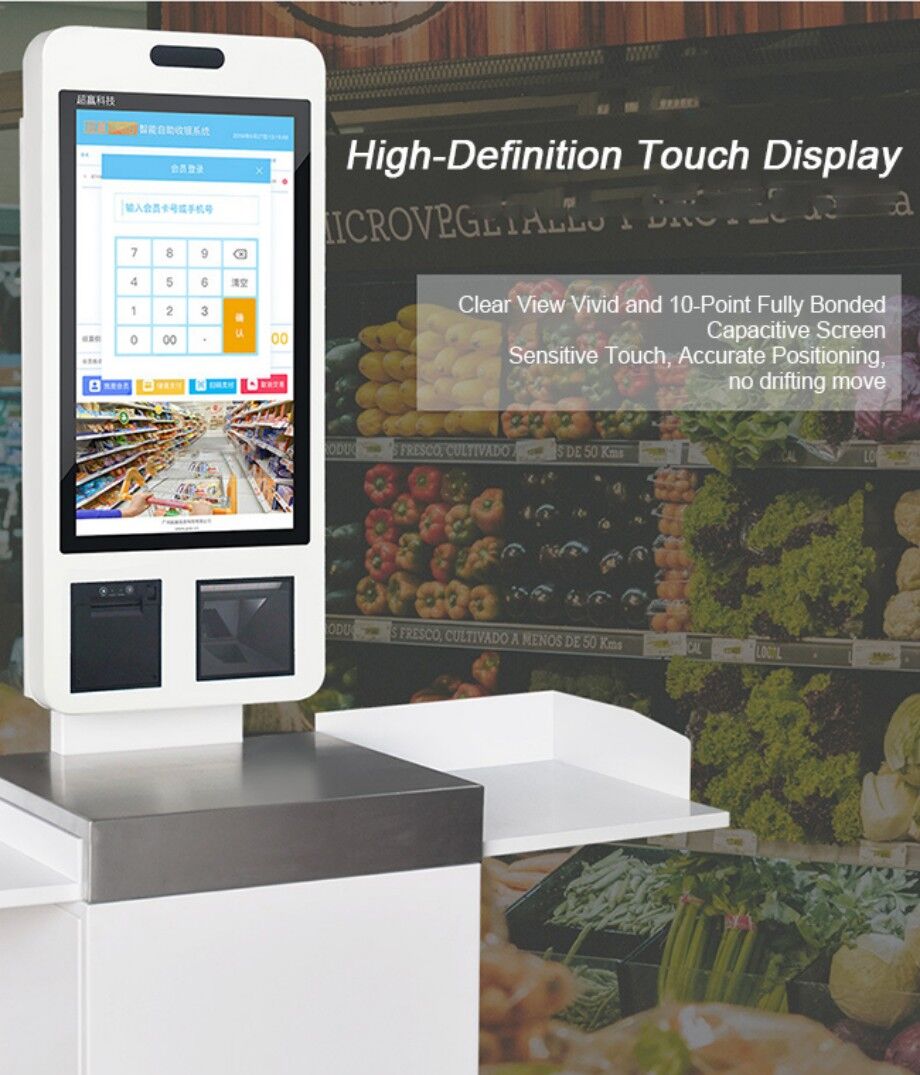

PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
Touch points | 10 points | ||
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
Anti-microbial protection and Shatterproof Protection | |||
Optically bonded 3mm glass for low parallax | |||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
Response speed | < 6ms | ||
Accuracy of touch | More than 90% of the touch area ±2mm | ||
Touch ways | Fingers, touch pen | ||
Output format | The coordinate output | ||
Clicks time | Unlimited | ||
The smallest touch size | 5mm | ||
Long resistance | Yes available | ||
Touch Interfaces | USB | ||
Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
Mini PC Parameters (Fan-less Industrial PC) | CPU | Celeron J1900 | |
RAM | 8GB | ||
SSD | 64GB | ||
WIFI | 150Mbps 802.11n wifi integate | ||
Network port | RJ45, 10M/100M Adaptive Ethernet | ||
Interface | 2 * RJ45 GB Ethernet | ||
2 * RS232 Serial Port | |||
operating system | Win10 or win11 optional | ||
Onboard interface | HDMI input | 1 | |
VGA input | 1 | ||
DVI input | 1 | ||
USB Type B or Any USB Type optional | 1 | ||
Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
Receipt Printer | 80mm Thermal printer with cutter | ||
Power | Power supply | AC 100V~240V, 50/60Hz | |
The Max power loss | ≤ 45w | ||
Standby power loss | < 1W | ||
Features | Operating temperature | 0℃ ~ 50℃ | |
Storage temperature | below10℃ ~ +60℃ | ||
Accessories | The length of Power Cable | 1.5m | |
The length of HDMI Cable | 2m | ||
The length of USB-A to USB-B Cable | 1.5m | ||

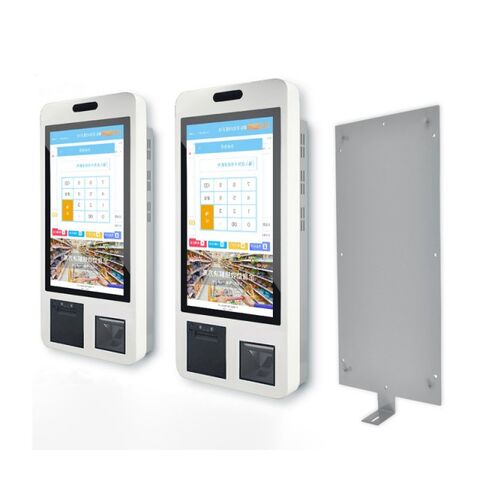

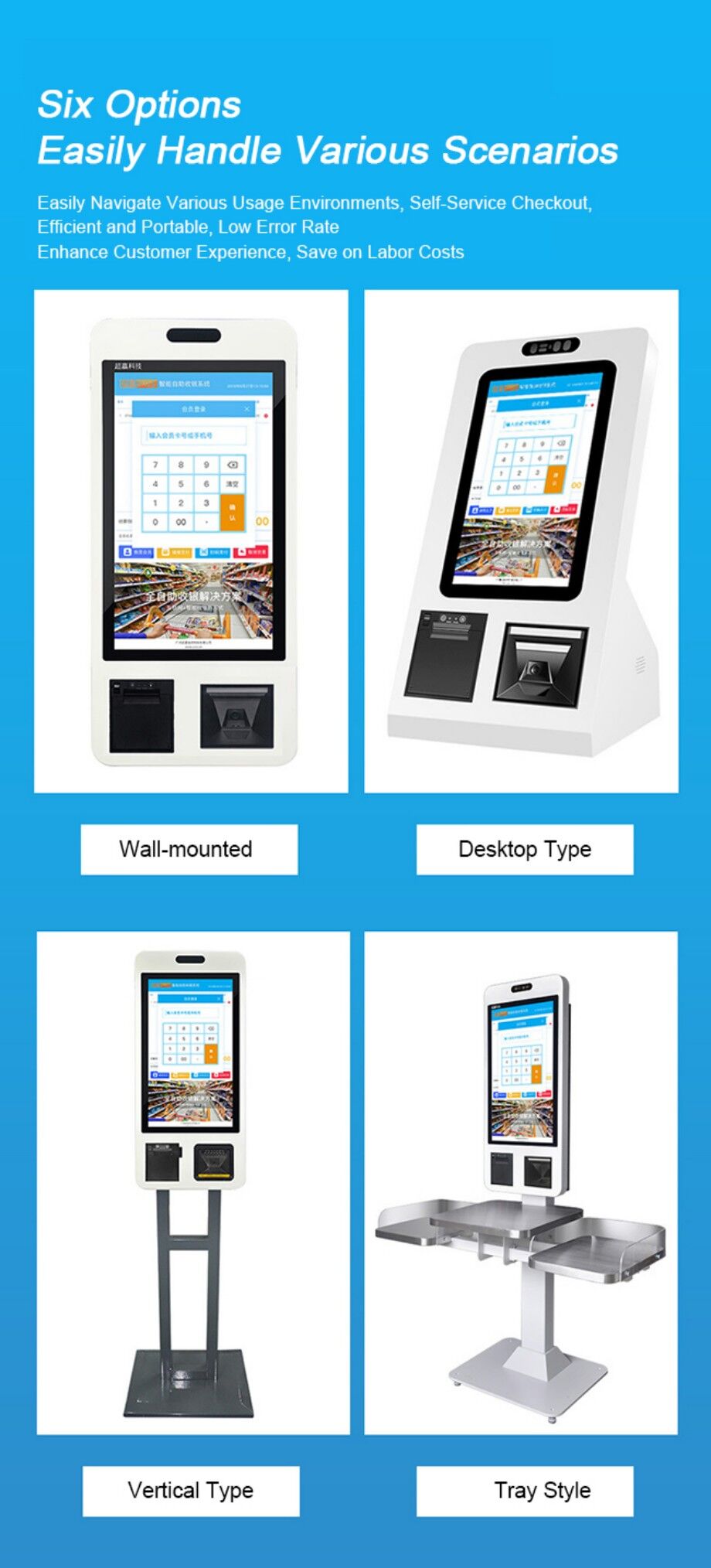

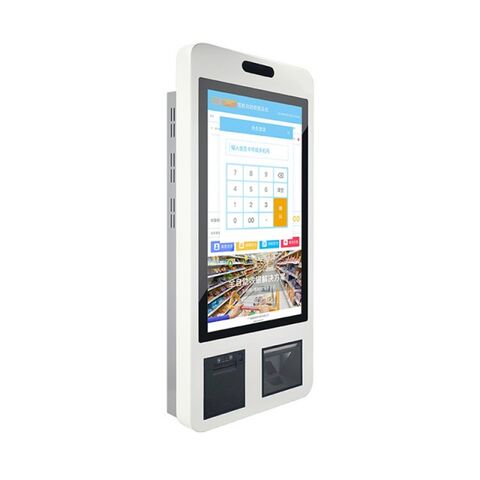

Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |

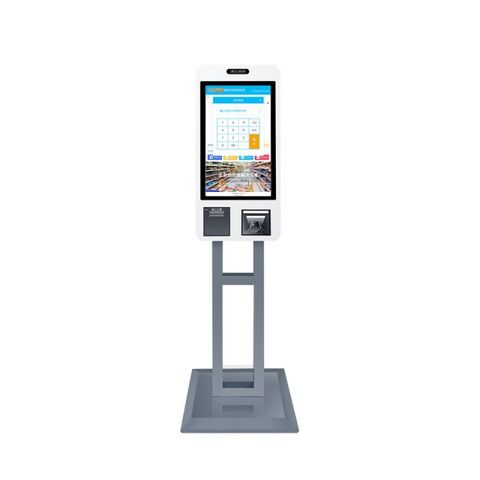

Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
Package size | Machine body size | Customized | |
Net weight | Customized | ||
Unit Package size | 832 X 530 X 150mm | ||
The Gross weight of Unit Package | 50kg |
Weight | 50 kg |
---|---|
Dimensions | 87,4 × 14,2 × 58,7 cm |
