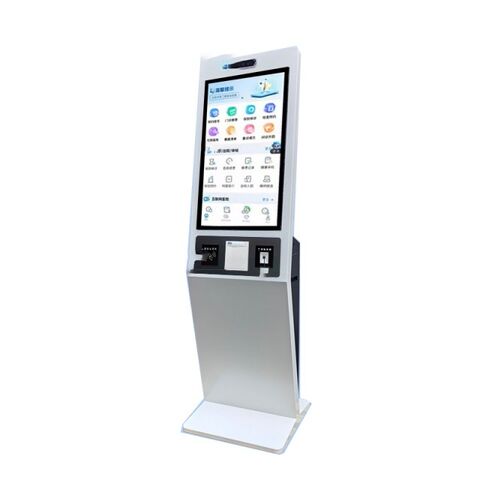

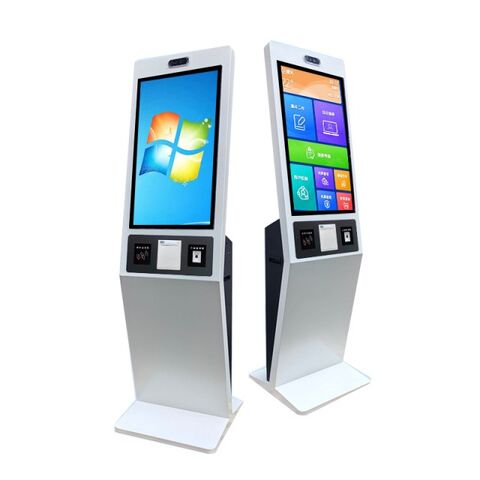

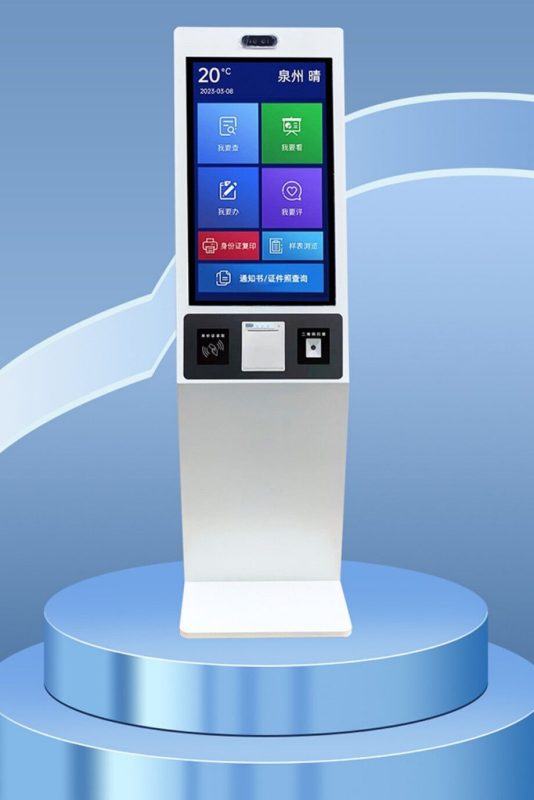

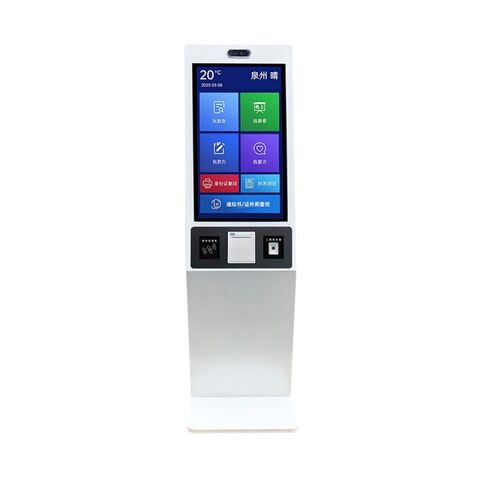

High-Performance Self-Ordering Kiosk with Dual-Screen Display for Enhanced Interaction
Key Specifications/ Special Features:
High-Performance Self-Ordering Kiosk with Dual-Screen Display for Enhanced Interaction
The High-Performance Self-Ordering Kiosk is a revolutionary addition to modern business operations. Boasting a dual-screen display, this kiosk offers a unique and engaging experience for customers. As they place their orders, the secondary screen enables them to peruse detailed product information. For instance, in a high – end restaurant, while a customer is ordering a steak, the secondary screen can display the origin of the beef, its marbling score, and different cooking methods. It can also showcase ongoing promotions like a buy – one – get – one – free offer on appetizers.
Under the hood, its high – performance hardware is engineered to ensure fast and reliable operation. Whether it’s a busy retail store during the holiday rush or a packed high – end restaurant at dinner time, the kiosk won’t lag or freeze. The intuitive interface, designed with user – friendliness in mind, guides customers through the ordering process with ease. Even those with minimal technological experience can navigate the system without a hitch, providing a seamless user experience.
| LCD Panel Parameters | Screen Size | 32 inch | |
| Display area | 698(H) X 391.8(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 832 X 530 X 150mm | ||
| The Gross weight of Unit Package | 50kg | ||
| Weight | 50 kg |
|---|---|
| Dimensions | 87,4 × 14,2 × 58,7 cm |
