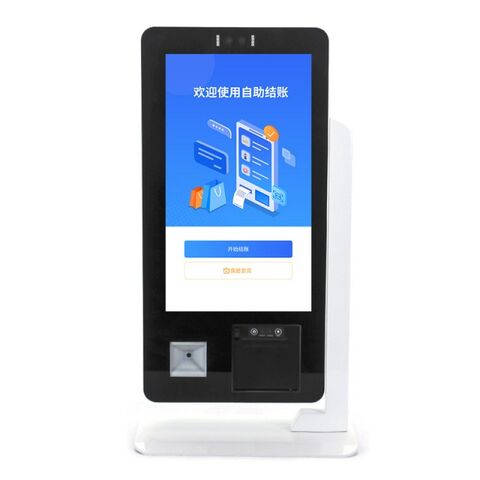

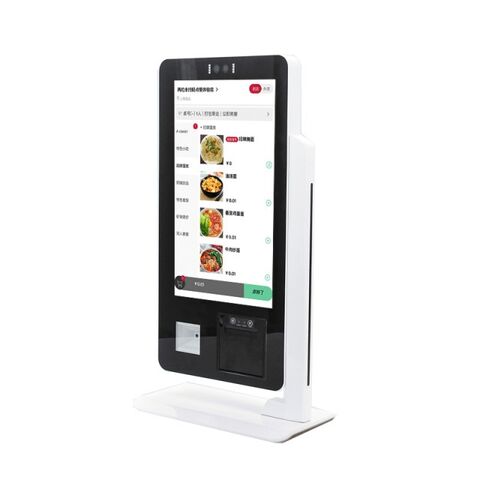

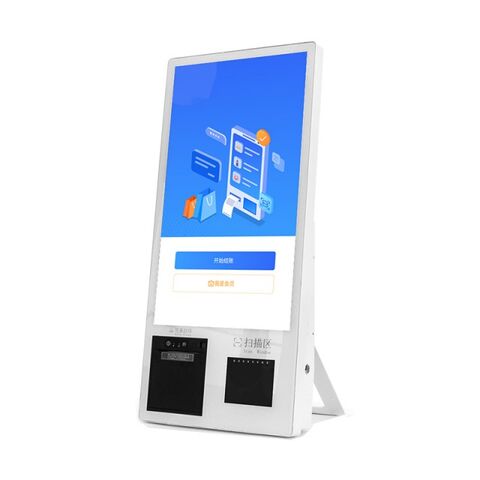

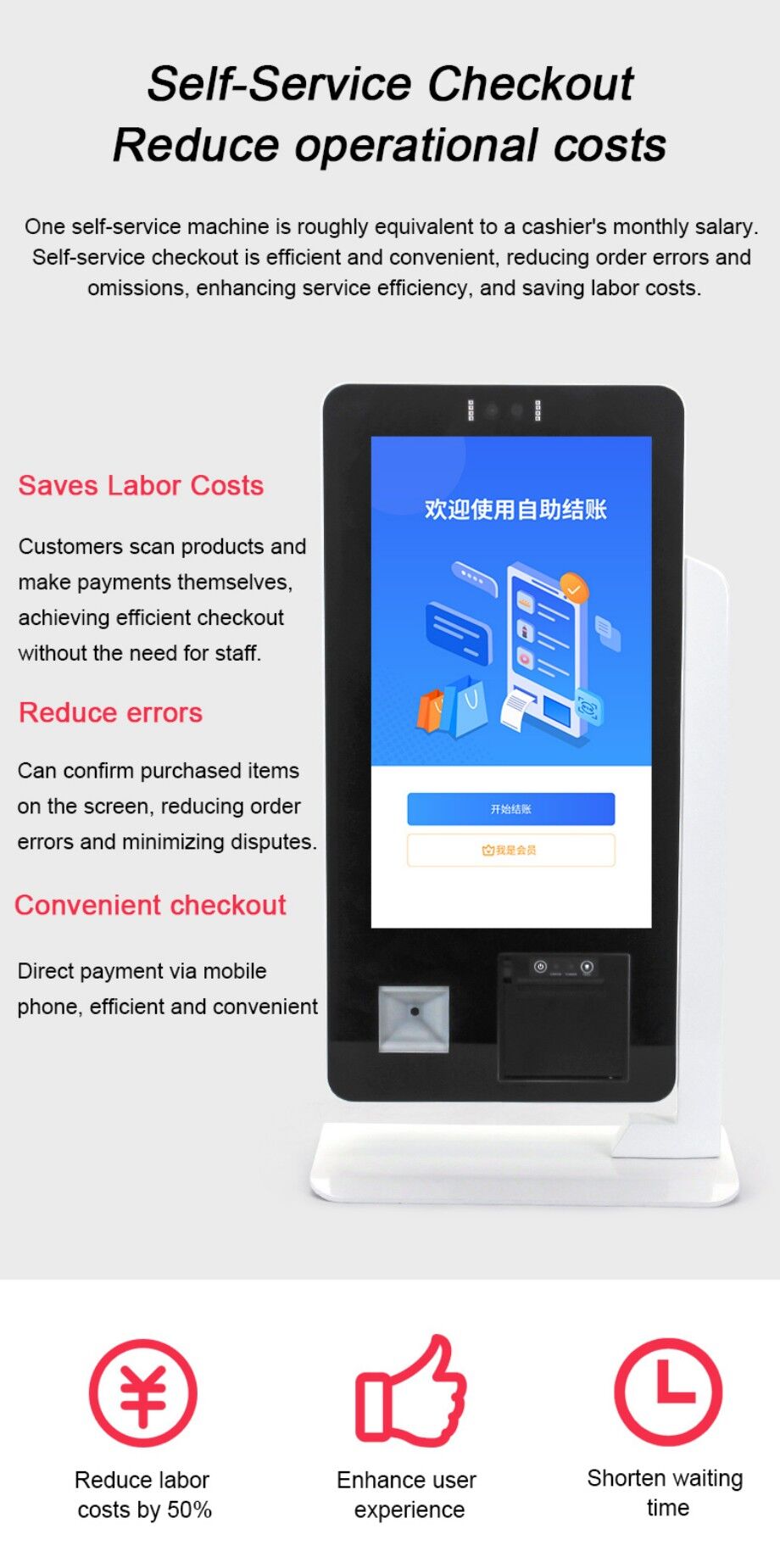

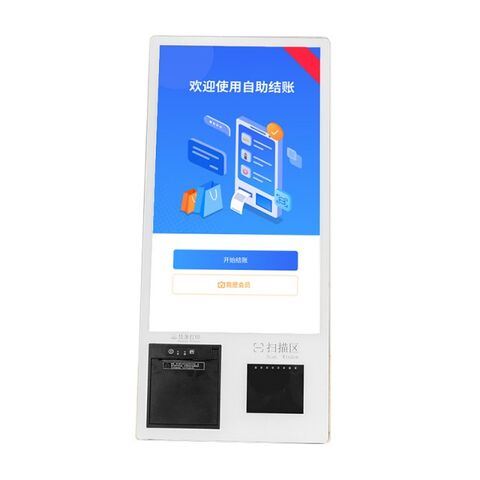

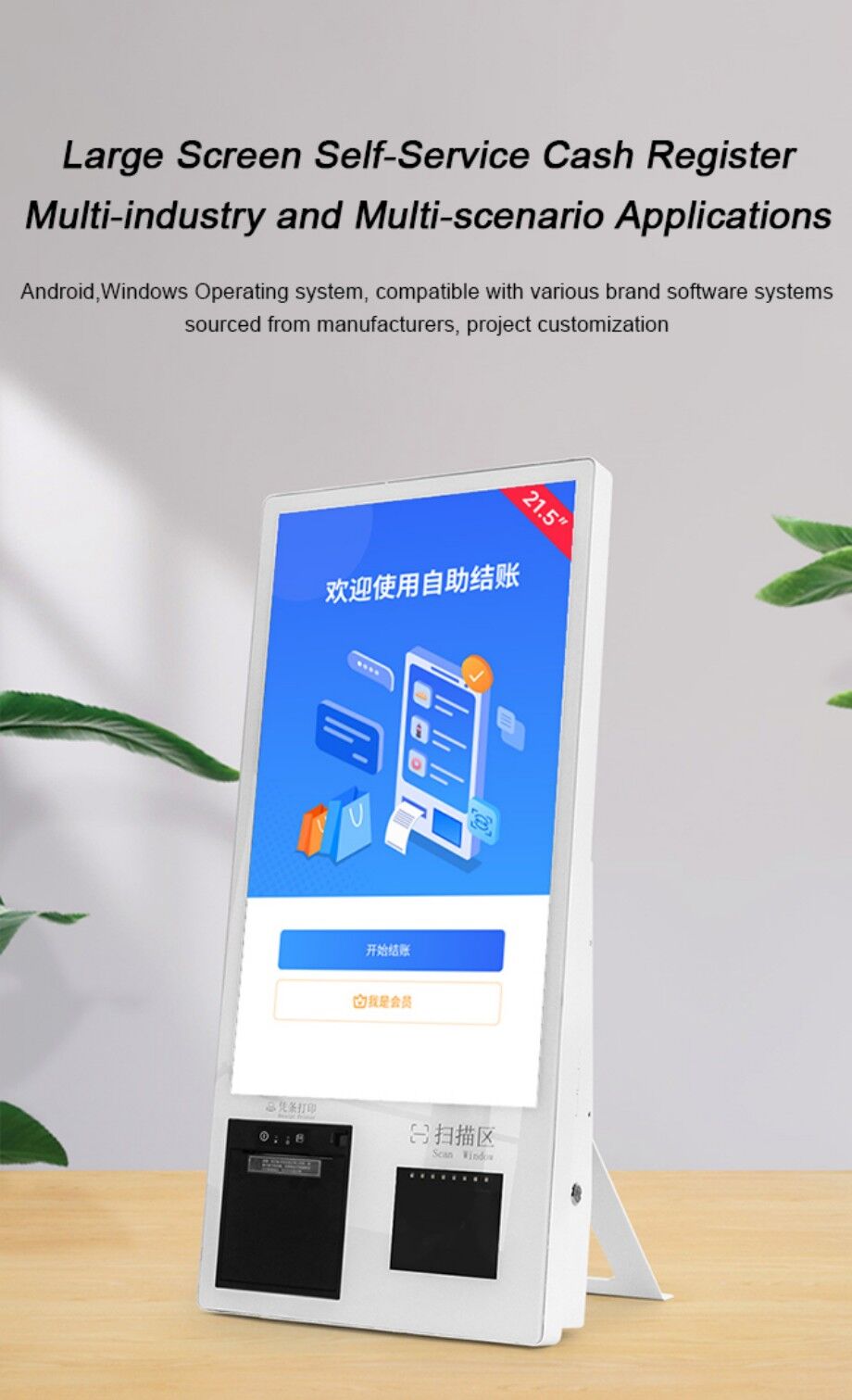

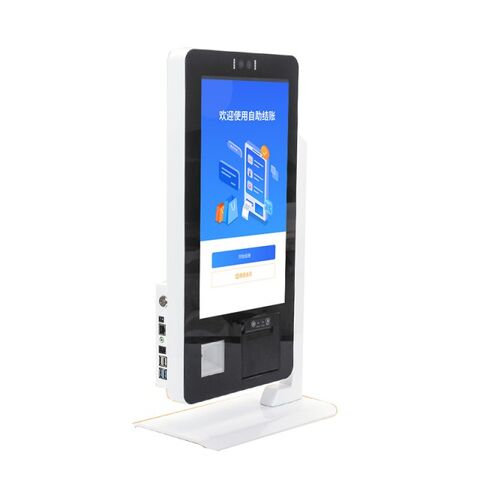

Ergonomic Self-Ordering Kiosk with Adjustable Height for Accessibility

Product Attribute
Feature:
Touch screen
Location:
Indoor
Screen Technology:
LCD
Category:
Description

Key Specifications/ Special Features:

Ergonomic Self-Ordering Kiosk with Adjustable Height for Accessibility

The Ergonomic Self-Ordering Kiosk is a thoughtfully designed solution that prioritizes accessibility and inclusivity, ensuring a seamless experience for users of all ages and abilities. Featuring an adjustable height mechanism, this kiosk can be easily customized to accommodate wheelchair users, children, and individuals of varying heights, making it a versatile choice for public spaces, hospitals, and family-friendly venues. Its ergonomic design ensures a comfortable and intuitive user experience, while the high-resolution display and responsive touch interface make ordering effortless and enjoyable.

This kiosk is built to cater to diverse customer bases, offering multi-language support that ensures clear communication and ease of use for users from different cultural and linguistic backgrounds. The customizable software allows businesses to tailor the interface to their branding and promotional needs, creating a cohesive and engaging experience. With its durable construction, the kiosk is designed to withstand the demands of high-traffic environments, ensuring long-lasting performance. Additionally, its energy-efficient operation reduces power consumption, making it a sustainable choice for businesses looking to minimize their environmental impact.

Key Features:

  • Ergonomic touchscreen display: Combines comfort and functionality for an inclusive user experience.
  • Adjustable height mechanism: Accommodates users of all ages and abilities, including wheelchair users and children.
  • High-resolution display: Delivers clear and vibrant visuals for easy navigation.
  • Responsive touch interface: Ensures smooth and intuitive operation for all users.
  • Multi-language support: Caters to diverse customer bases with clear communication in multiple languages.
  • Customizable software: Allows businesses to align the interface with their branding and promotional needs.
  • Durable construction: Built to withstand heavy usage in high-traffic environments.
  • Energy-efficient operation: Reduces power consumption while maintaining high performance.

Applications:

This kiosk is ideal for public spaces, such as parks, libraries, and transportation hubs, where accessibility and ease of use are critical. It’s also perfect for hospitals, providing a convenient and hygienic way for patients and visitors to access information or place orders. In family-friendly venues, such as amusement parks, zoos, or museums, the kiosk ensures that users of all ages and abilities can interact with it comfortably. Additionally, it’s a great fit for accessible environments, such as senior centers or community facilities, where inclusivity is a top priority.

Why Choose This Kiosk?

The Ergonomic Self-Ordering Kiosk is more than just a self-service tool—it’s a commitment to inclusivity and accessibility. By combining an adjustable height mechanism, ergonomic design, and multi-language support, this kiosk ensures that every user feels welcomed and valued. Its durable construction and energy-efficient operation make it a practical and sustainable choice for businesses looking to enhance customer satisfaction and streamline operations.

Whether you’re managing a hospital, a public space, or a family-friendly venue, this kiosk is the ultimate solution for delivering a modern, accessible, and efficient customer experience.

LCD Panel Parameters Screen Size 15.6 inch
Display area 344.16(H) X 193.59(V)mm
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/㎡
Contrast Ratio 3000 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency 60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
       Mini PC Parameters          (Fan-less Industrial PC) CPU Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1

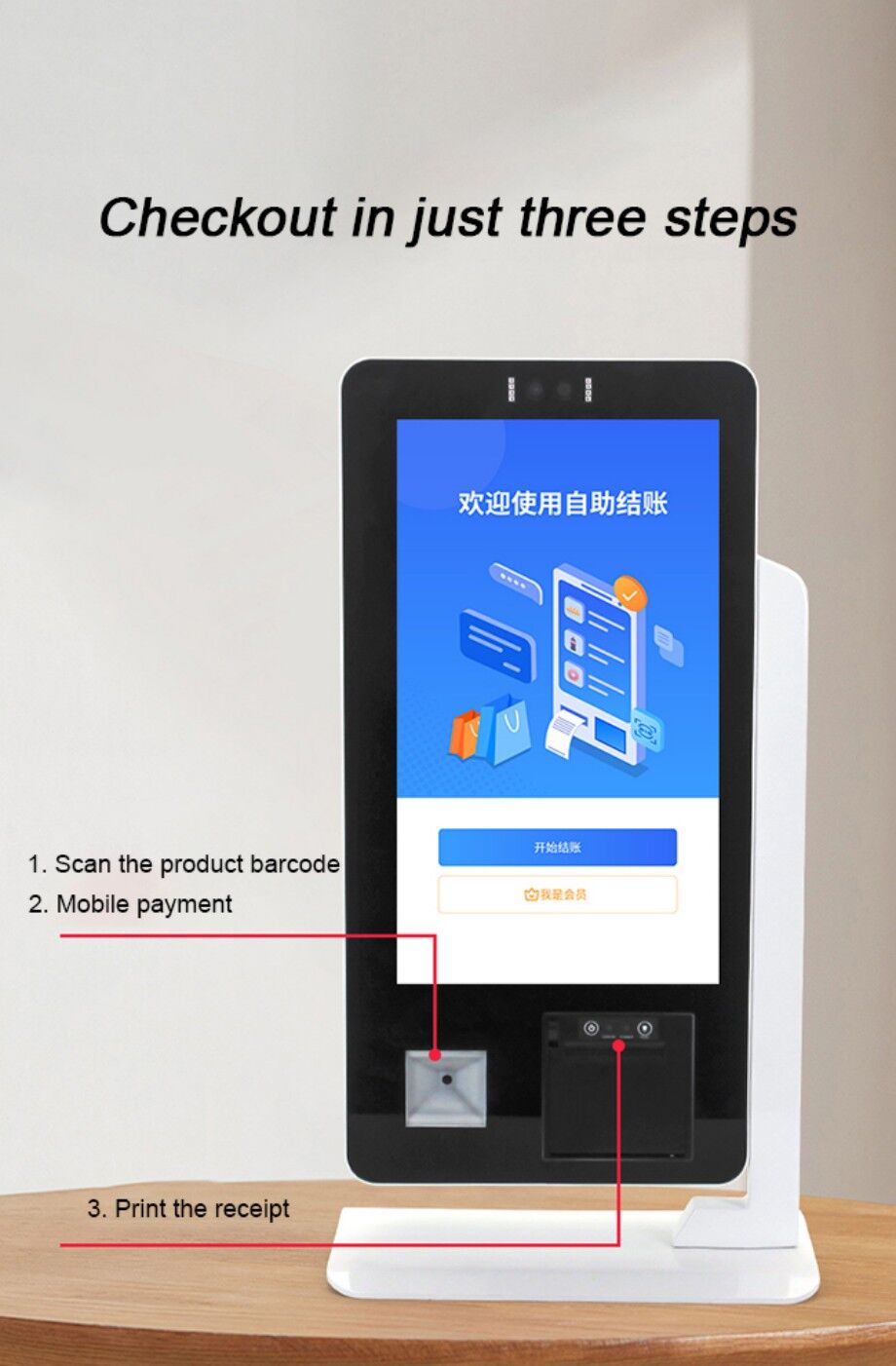

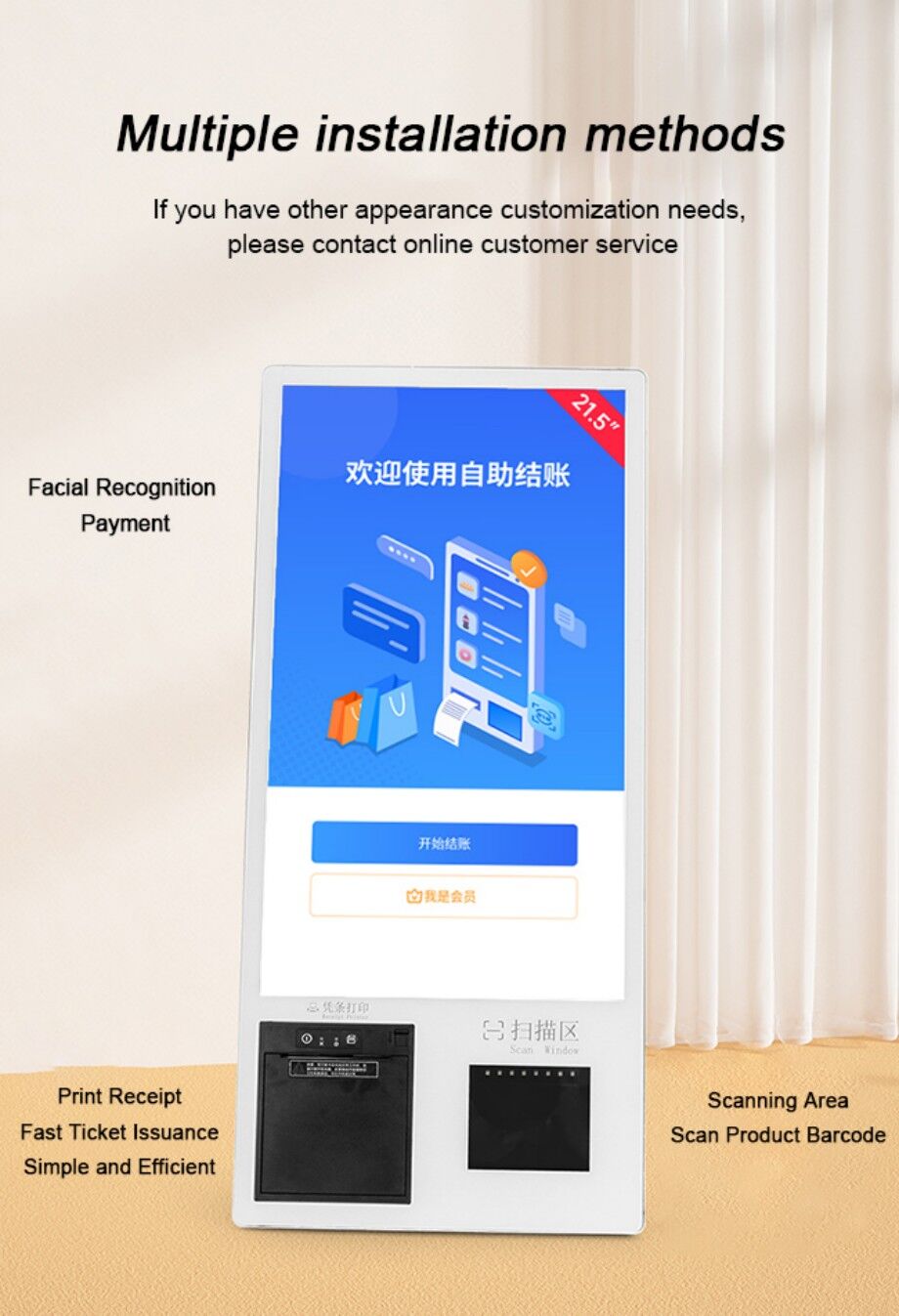

Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature 0℃ ~ 50℃
Storage temperature below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m

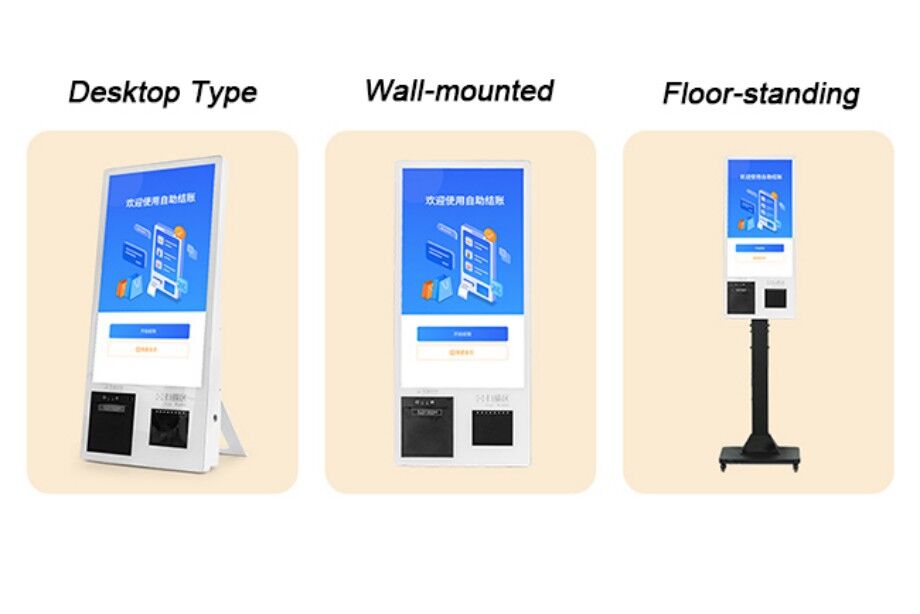

Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size 450 X 310 X 110mm
The Gross weight of Unit Package 50kg
Additional information
Weight 50 kg
Dimensions 87,4 × 14,2 × 58,7 cm
