21.5-Inch Linux Touch Screen for Smart Retail Displays and Healthcare Applications
Product Attribute
Feature:
Non touch screen
Location:
Indoor
Screen Technology:
LCD
Description
Key Specifications/ Special Features:
21.5-Inch Linux Touch Screen for Smart Retail Displays and Healthcare Applications
21.5-Inch Linux Industrial Control All-in-One Machine: High-Definition Visuals for Enhanced Operational Clarity
Industrial operations demand precise and consistent data visualization, and the 21.5-inch Linux industrial control all-in-one machine delivers just that. Its high-definition display ensures users have a comprehensive view of critical information, such as production metrics, equipment status, and facility monitoring. The large screen size allows for better visualization of complex data dashboards, while its reliable performance ensures real-time updates, enabling quick and informed decision-making.
| LCD Panel Parameters | Screen Size | 21.5 Inch | ||
| Display Area | 476.64 mm (Height) X 268.11 mm (Width) | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7m | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 3000 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
| Response Time | 6.5ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Internal computer configuration (Choose one of two) |
CPU | i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Linux | Linux | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 45 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||

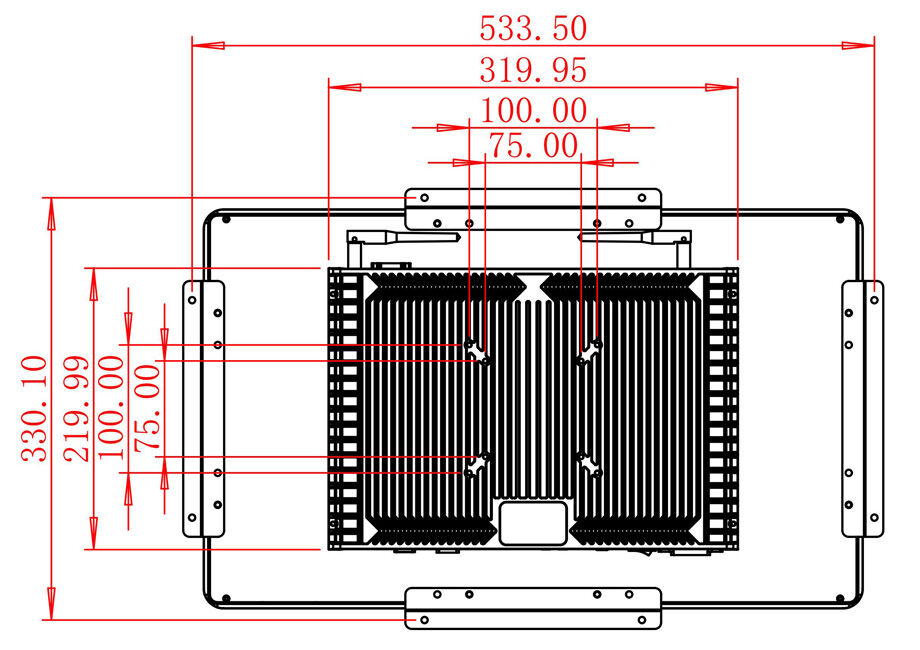

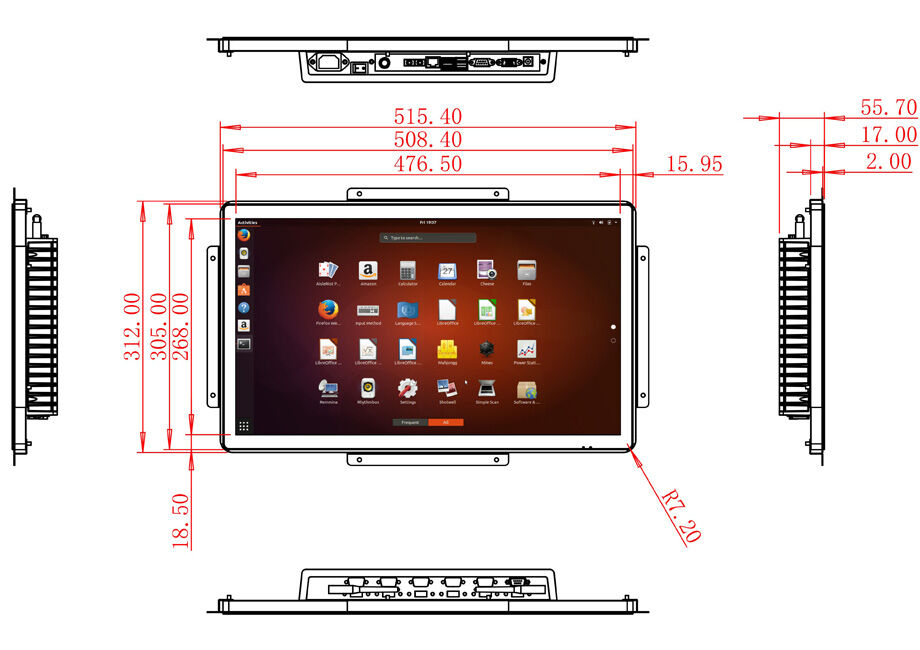

| Package Size | Device Dimensions | 523 X 315 X 51.7 mm. | ||
| Net Weight | 7 Kilogram | |||
| Package Size | 58 X 37.8 X 10.5 Centimeter | |||
| Gross Package Weight per Unit | 7.5 Kilogram | |||
