19-Inch Monitor for Transportation Systems and Access Control Panels

Name: 19-Inch Monitor for Transportation Systems and Access Control Panels
Brand: YOT
SKU: 13261

19-Inch monitor Industrial Control All-in-One Machine: High-Definition Visuals for Enhanced Operational Clarity

Industrial operations demand precise and consistent data visualization, and the 19-inch monitor industrial control all-in-one machine delivers just that. Its high-definition display ensures users have a comprehensive view of critical information, such as production metrics, equipment status, and facility monitoring. The large screen size allows for better visualization of complex data dashboards, while its reliable performance ensures real-time updates, enabling quick and informed decision-making.

LCD Panel Parameters	Screen Size	19 Inch

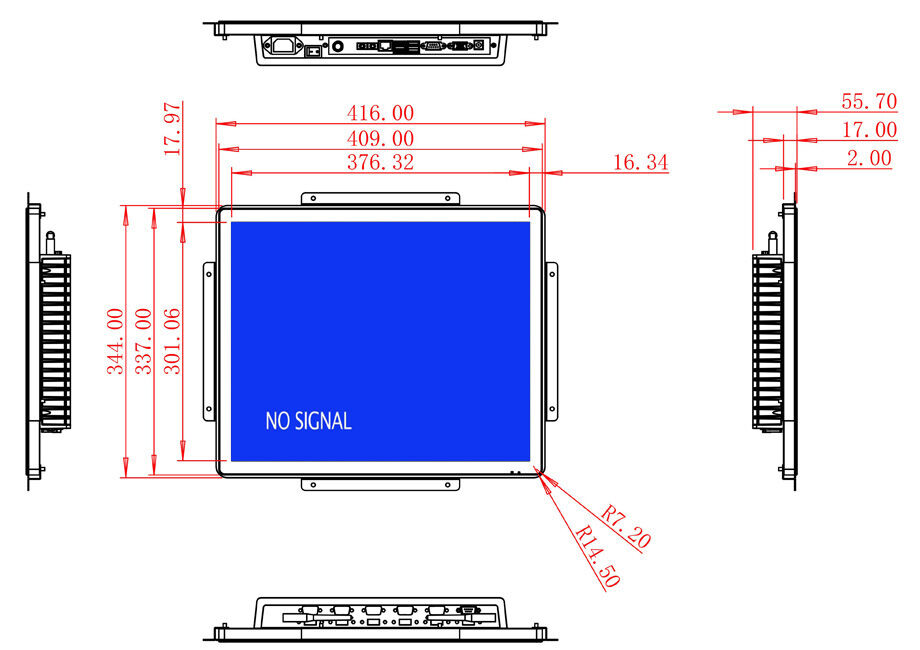

	Display Area	376.32 mm.(Height) X 301.06(Width)mm.
	Aspect Ratio	4 : 3
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 1024
	Display Color	16.7m , 73% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
Audio Parameters (External Speaker Option)	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Onboard Interface	HDMI Input	1
	VGA Input	1
	DVI Input	1
	USB Type B or any desired USB Type	1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Accessories	Power Cord Length	1.5m
	HDMI Cable Length	2m
	USB-A to USB-B Cable Length	1.5m
	Stereo Speaker Size with Connector	994520mm
	Stereo Speaker Length	1.5m
Package Size	Device Dimensions	416 X 344 X 55.7mm.
	Net Weight	6.5 Kilogram
	Package Size	50 X 42 X 15Centimeter
	Gross Package Weight per Unit	7 Kilogram

TAG:

open frame touch screen monitor,
