18.5-Inch Android Screen for Medical Devices and Public Information Panels

Name: 18.5-Inch Android Screen for Medical Devices and Public Information Panels
Brand: YOT
SKU: 13334

18.5-Inch Android Industrial Control All-in-One Machine: High-Definition Visuals for Enhanced Operational Clarity

Industrial operations demand precise and consistent data visualization, and the 18.5-inch Windows industrial control all-in-one machine delivers just that. Its high-definition display ensures users have a comprehensive view of critical information, such as production metrics, equipment status, and facility monitoring. The large screen size allows for better visualization of complex data dashboards, while its reliable performance ensures real-time updates, enabling quick and informed decision-making.

LCD Panel Parameters	Screen Size	18.5 Inch
	Display Area	409.8 mm.(Height) X 230.4(Width)mm.
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7m , 72% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1200 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Built-in Android PCB Configuration (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11
	Ethernet	1 x RJ45, 1,000 Mbps	Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	OTG USB2.0 x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃

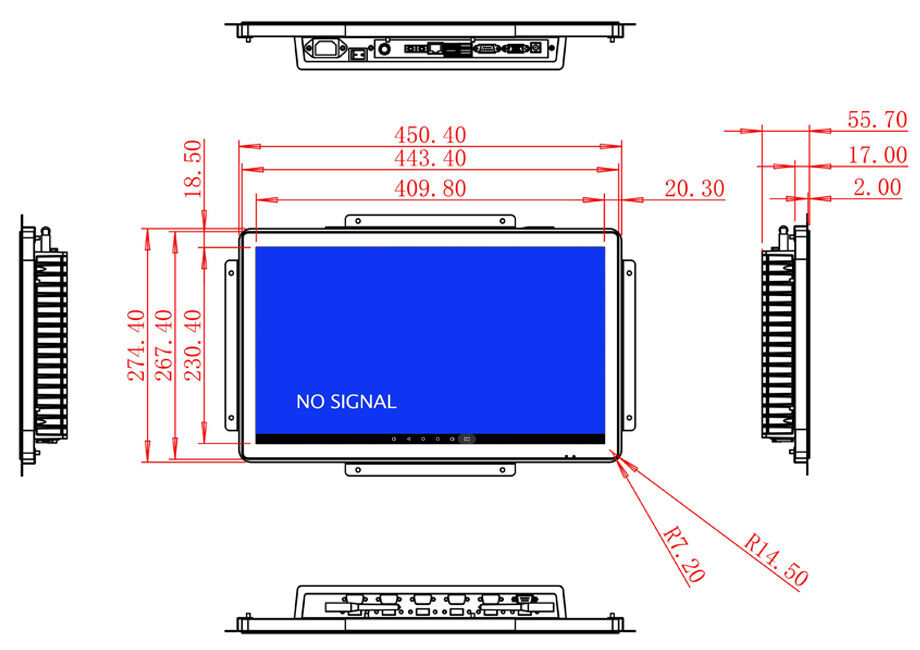

Package Size	Device Dimensions	450.4 X 274.4 X 55.7 mm
	Net Weight	6.5 Kilogram
	Package Size	53 X 35 X 15 Centimeter
	Gross Package Weight per Unit	7 Kilogram
